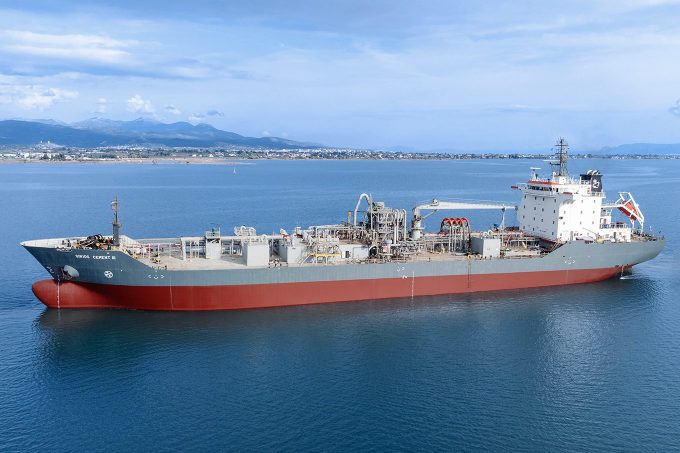

M/V SIRIOS CEMENT III

IMO No: 9373606
TYPE OF VESSEL: CEMENT CARRIER
FLAG: PANAMA
CLASS: RINA
BUILT: BATAM INDONESIA / 2007
BUILDER: LABROY SHIPBUILDING & ENGINEERING PTE LTD.
GRT/NRT: 12047 / 5032
D W T: 19566.26
LOA x B x D: 145.00 x 25.50 x 12.00
MAX DRAFT: 9.07
MAIN ENGINE: CATERPILLAR MOTOREN GmbH & CO KG /
MAK 8M25 x2 TOTAL POWER 5280 KW
AUX. GENERATORS:
2 UNITS SHAFT GENERATORS /AVK/DSG 99 K1-4/2750 KVA
1 UNIT DIESEL GENERATOR / CATERPILLAR /3412/534 BKW
1 UNIT EMERGENCY GENERATOR / CATERPILLAR /3406/260 BKW
CEMENT HOLDS FULL CAPACITY: 17183.30 m3
BALLAST TANK: 7244.08 m3
RADIO TELECOM: GMDSS A1+A2+A3 + SATCOM

SPEED/CONSUMPTIONS*

AT SEA

BALLAST: 11.5 KNOTS/16 MT IFO 0.5% LOW SULFUR
FULL LOAD: 10.5 KNOTS/16.5 MT IFO 0.5% LOW SULFUR

AT PORT

ANCHORAGE: 2.5 MT/DAY MGO
LOADING: 4.0 MT/DAY MDO

DISCHARGING

PNEUMATIC: 2 LINES/8.5 MT/DAY MGO
MECHANICAL: 4.0 MT/DAY MGO

LOADING RATE/SYSTEM

MECHANICAL: UP TO 1000 TPH
PNEUMATIC: UP TO 2 x 400 TPH

DISCHARGING RATE/SYSTEM

PNEUMATIC: UP TO 2 LINES x 300 TPH PER LINE IN A DISTANCE OF 150M LENGTH,
25 HEIGHT AND 3 OPEN BENDS.
MECHANICAL: UP TO 450 TPH

DISCHARGING

DISCHARGING CAPABILITY BY TRUCKS 7 MIN PER 30 M/T TRUCK.
DISCHARGING RATE ALSO DEPENDS ON RECEIVING SHORE
TERMINAL BACK FILTERS SYSTEM AND LINE BACK PRESSURE.

*All figures are about  and based on good weather conditions – wind force 3 Beaufort.
*Vessel can load up to 4 types of cement.
